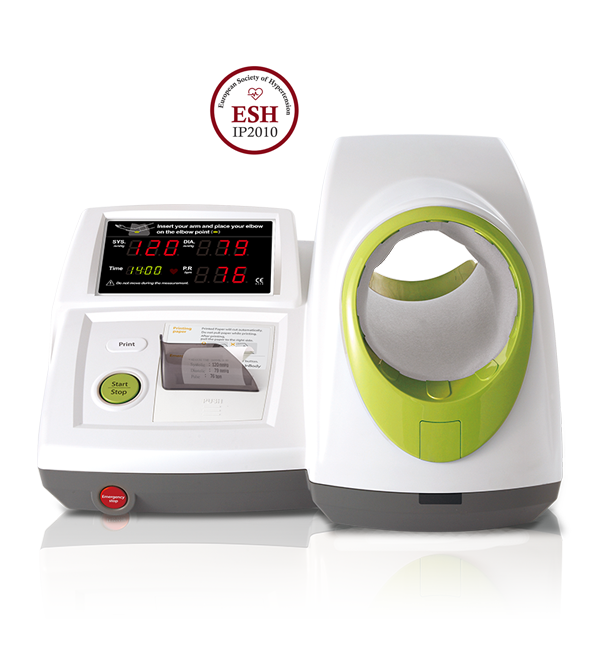

BPBIO 320S — Self-Testing Blood Pressure Kiosk
Contact-free self-test · Voice guidance · ~30-second result
Kiosk
In Stock
SKU BPBIO-320SRequest pricing on quote
Overview
Clinically validated fully-automatic blood pressure kiosk (ESH IP2 protocol). Inflationary-oscillometric method delivers pain-free measurement, with voice guidance, elbow-position sensor, motion sensor, one-touch start, high-speed thermal printer, and emergency stop button. Optional disposable cuff barrier for sanitary contact-free testing. Ideal for hospitals, clinics, and pharmacies.

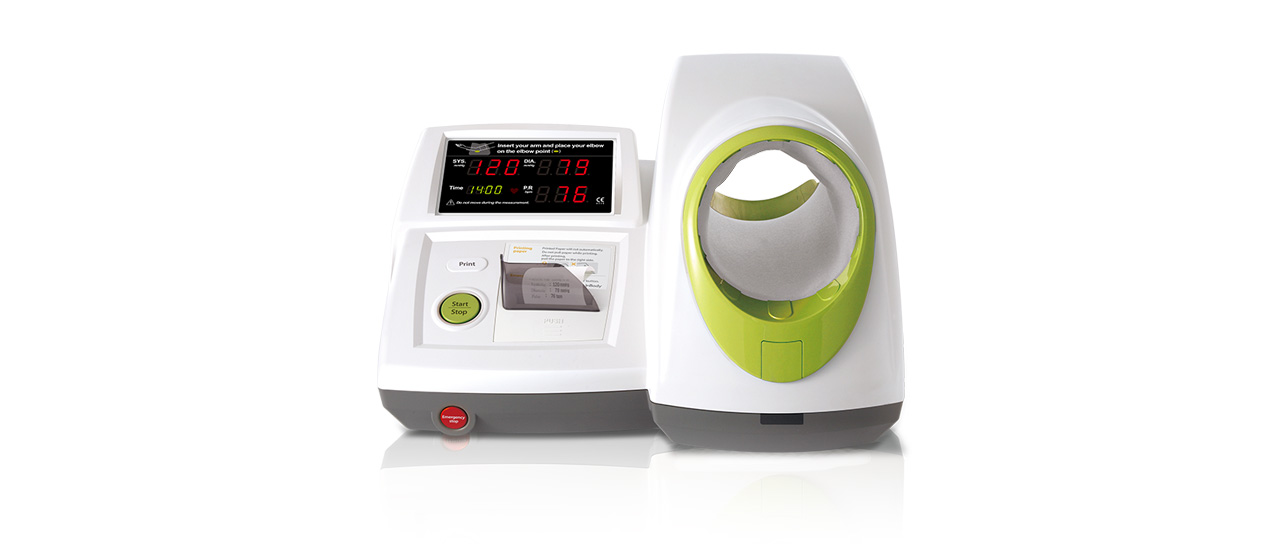

Features
- Voice guidance — hands-free step-by-step self-measurement

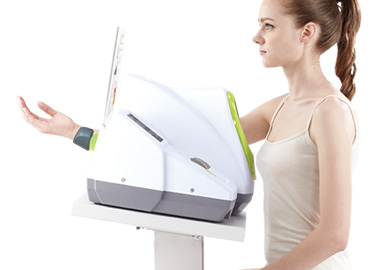

- Elbow sensor auto-detects proper arm positioning
- Motion sensor detects human presence (BPBIO 320S only)

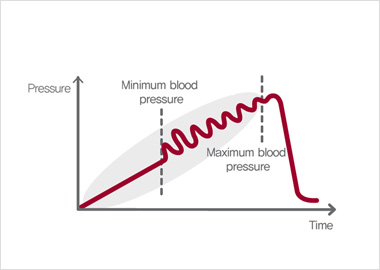

- Inflationary oscillometric method — reduces pain while measuring
- One-button start · results in ~30 seconds
- High-speed thermal printer with customizable result sheet
- Two Start/Stop buttons (front & back) + Emergency Stop
- Clinically validated per ESH protocol (IP2)
- Applicable arm circumference: 17–42 cm
- Optional disposable cuff barrier for contact-free hygiene
- Interfaces with InBody 270/370S/570/770 for combined result sheets
Specifications
- SKU
- BPBIO-320S
- Manufacturer
- InBody (Sterile Mate authorized dealer)
- Measurement Method
- Inflationary Oscillometric
- Measurement Range
- Pressure 0–300 mmHg · Pulse 30–240 bpm
- Accuracy
- Pressure ±2 mmHg · Pulse ±1.5%
- Measurement Time
- ~30 seconds average (20–50 s)
- Applicable Arm Circumference
- 17–42 cm
- Display
- 7-Segment LED
- Printer
- High-speed thermal
- Dimensions
- 489(W) × 450(L) × 284(H) mm
- Weight
- ~9 kg
- External Interface
- RS232C (USB via dedicated cable)
- Power
- AC 100–240V, 50/60Hz
- Optional Items
- Dedicated desk · height-adjustable chair
Applications

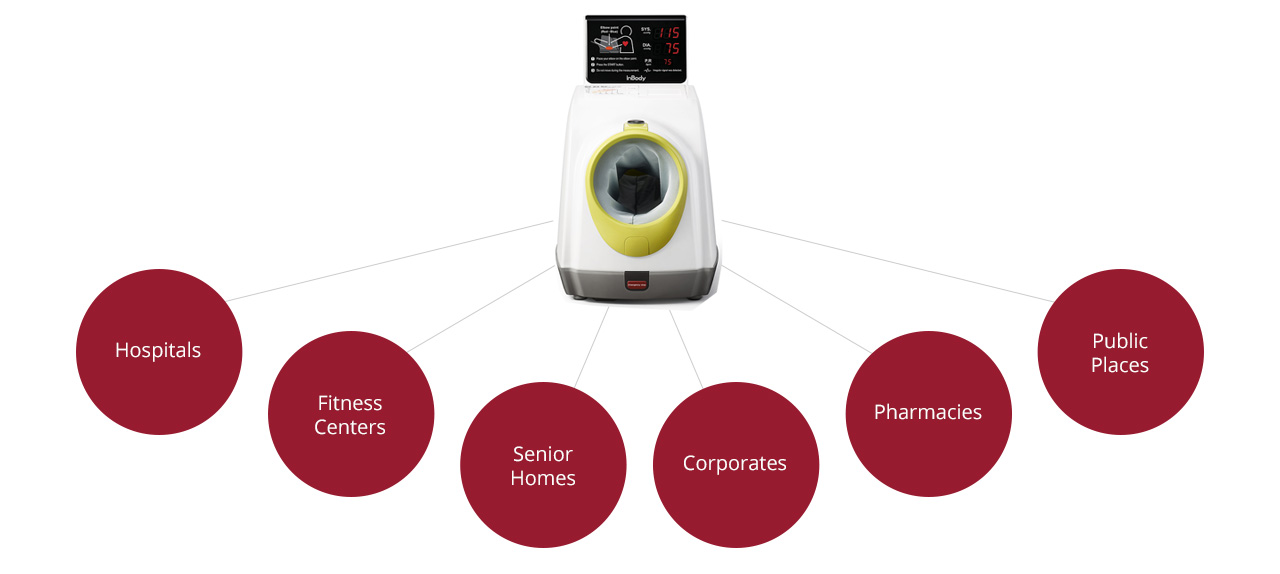

Hospital lobbiesPharmaciesClinicsCommunity health screeningsCorporate wellness
