BD 305194 – NEEDLE 23X1 1/2 100/BX 10BX/CS
305194 – 23 G BD Needle 1 1/2 in. Thin wall IM, Single use, Sterile

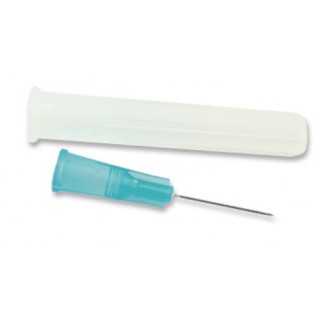

BD HYPODERMIC NEEDLE is sharp, tri-beveled stainless steel needles are with non-coring design. Unique grinding and polishing process enhances the sharpness for ease of penetration. The needles feature universal fit, triple sharpened, sterile and are color coded hubs for easy identification.
- PrecisionGlide stainless-steel needles with translucent, color-coded, polypropylene hubs.
- Can also be sterilized with ethylene oxide (EtO) in their individual, easy-to-peel blister package.
- Thin wall IM, regular bevel.
Key Product Features
|Needle Gauge||23 G|
|Needle Gauge (m)||0.60 mm|
|Needle Length (in.)||1 1/2 in.|
|Needle Length (m)||38.10 mm|
|Needle Tip Type||Regular|
|Needle Wall Type||Thin wall IM|
|Total Shelf Life||1825|
|Type Of Bevel||Regular|
|BPA Free||Not made with BPA|
|DEHP Free||Not made with DEHP|
|PVC Free||Not made with PVC|
|Latex Statement||Not made with natural rubber latex|
|Single Use||Product is for single use only|
Types of Needle Walls and Bevels
The Thin Wall needle is thinner than a Regular Wall needle. The inner diameter is bigger without any increase in the outside diameter. For example, a 21 G Thin Wall needle has the same outside diameter as a 21 G Regular Wall, but has the same inner diameter as a 20 G needle. Thin Wall allows the same flow volume as a Regular Wall needle one gauge larger.
305194 Thin Wall

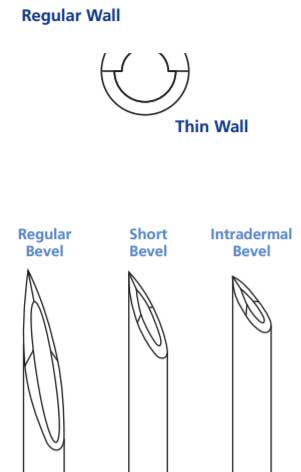

Thin Wall: As shown in the diagram, the thin wall needle has a narrower steel wall, allowing a greater volume of fluid to pass through it. The flow rate is typically equivalent to that of a needle one gauge larger. This is especially important with very thin needles.
305194 Regular bevel
Regular bevel: The most common bevel, used for a vast majority of applications. Typically used for intramuscular and subcutaneous injections
Stainless Steel Needle
Made of stainless steel, which is siliconized to allow easier penetration, thus minimizing patient discomfort. Available in different lengths and gauges to suit individual clinical and patient needs.
BD Conventional Needle & Syringe Color Chart
|What MRI safety information does the labeling contain?||Labeling does not contain MRI Safety Information|
|Device required to be labeled as containing natural rubber latex or dry natural rubber (21 CFR 801.437)||No|
|Device labeled as “Not made with natural rubber latex”||No|
|Prescription Use (Rx)||Yes|
|Over the Counter (OTC)||No|
|Human Cell, Tissue or Cellular or Tissue-Based Product (HCT/P)||No|
Product Packaging Information
|Length||116.0 mm||451.0 mm|
|Width||88.0 mm||206.0 mm|
|Height||98.0 mm||129.0 mm|
|Weight||188.0 g||1.88 g||1.88 kg|
